CCW IBEX Full-Suspension BMX Frame

The IBEX is not just a frame—it’s a 20-inch revolution.

Inspired by the bold Fingerscrossed BMX project, this full-suspension BMX is the invitation you’ve been waiting for to explore brand new playgrounds. It is engineered for riders who demand the agility and raw fun of a BMX, combined with the shock absorption and comfort of suspension systems, allowing you to ride the most unlikely spots without compromise.

Technical Specifications and Design

Our handcrafted manufacturing process guarantees impeccable quality and a perfect balance of robustness and performance.

• Optimized Suspension System:

  • Designed for a 100 mm travel fork (e.g., Manitou J-Unit 20″).

  • Rear shock required: 165 x 38 mm for 100 mm of rear travel. (Rockshox Monarch or similar; shock not included).

• Increased Rigidity:

  • Our goal was to increase rigidity between the front and rear triangle. We achieved this with a simple, maintenance-free pivot point, utilizing a clever assembly of bushings and precision machined parts.

• Premium Materials:

  • Built with a selection of Reynolds 631 and Chromoly 4130 tapered stays. This combination ensures the perfect balance between legendary strength and lightness.

• Progressive Geometry:

  • The head tube angle and height are adjusted to provide the necessary stability at high speed while maintaining the distinctive agility of a 20-inch for tricks and tight spots.

Geometry Details

GOAT KIT include frame, 19mm Euro Bottom Bracket and Soil integrated headset

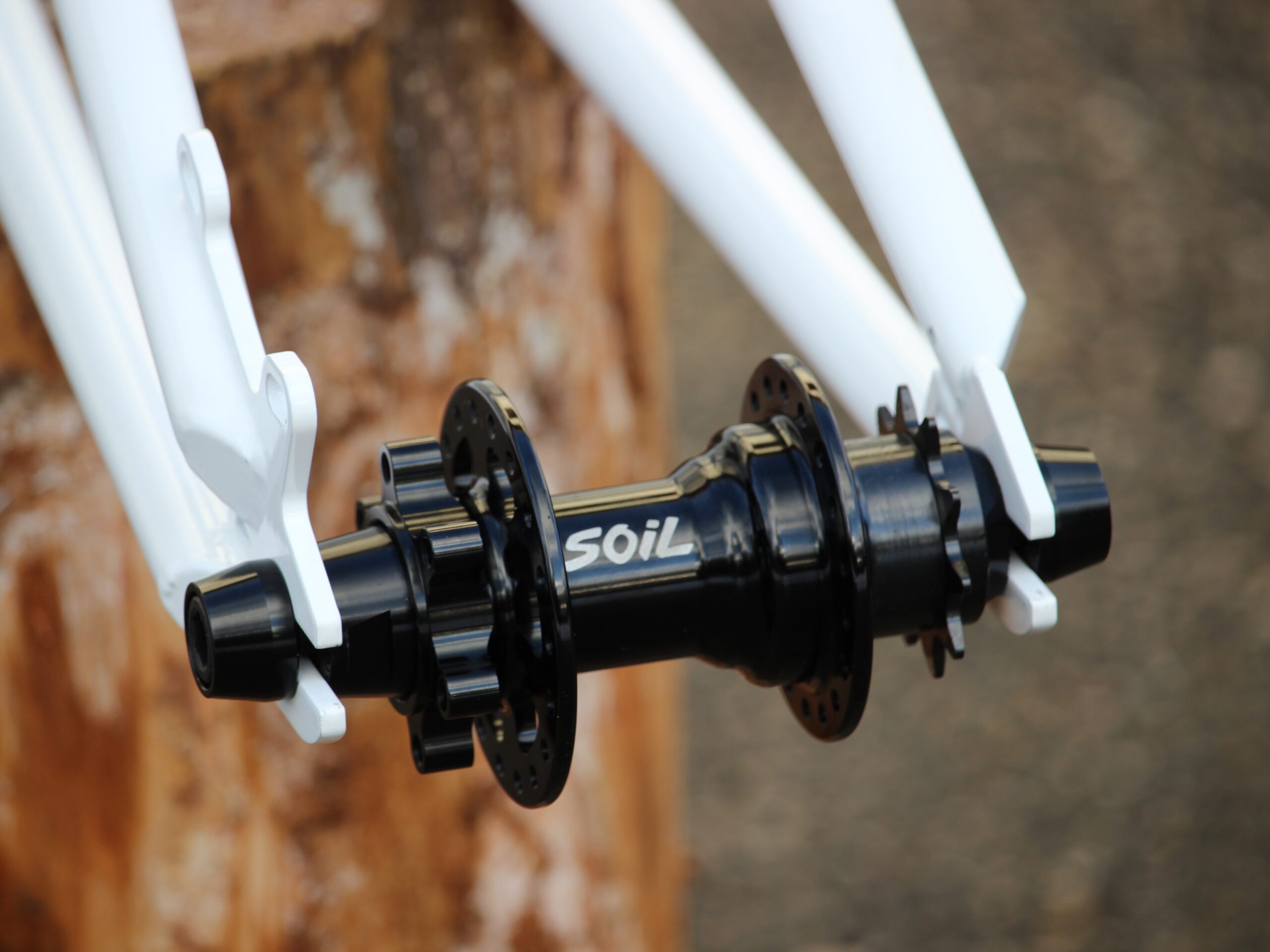

GOAT KIT + parts include Rockshox Monarch 165×38 rear shock , Soil 110mm BMX Disc hub
