CCW IBEX Full-Suspension BMX Frame
🚨 This is a deposit only, please check details and pricing below
Limited Pre-Order Quantity – Handcrafted in France
PRE ORDER WILL CLOSE ON DECEMBER 31ST 2025
The IBEX is not just a frame—it’s a 20-inch revolution.
Inspired by the bold Fingerscrossed BMX project, this full-suspension BMX is the invitation you’ve been waiting for to explore brand new playgrounds. It is engineered for riders who demand the agility and raw fun of a BMX, combined with the shock absorption and comfort of suspension systems, allowing you to ride the most unlikely spots without compromise.
Technical Specifications and Design
Our handcrafted manufacturing process guarantees impeccable quality and a perfect balance of robustness and performance.
-
Optimized Suspension System:
-
Designed for a 100 mm travel fork (e.g., Manitou J-Unit 20″).
-

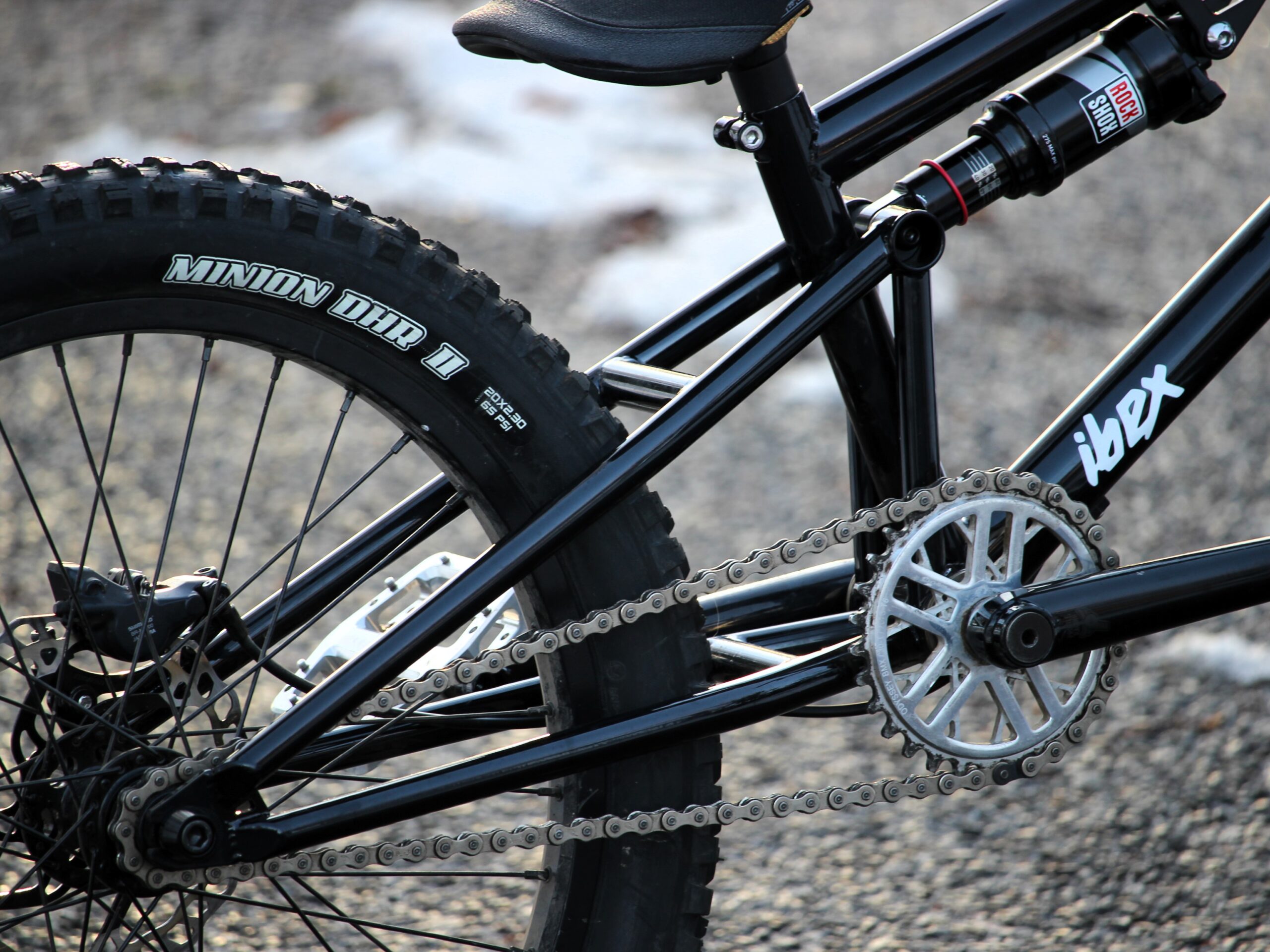

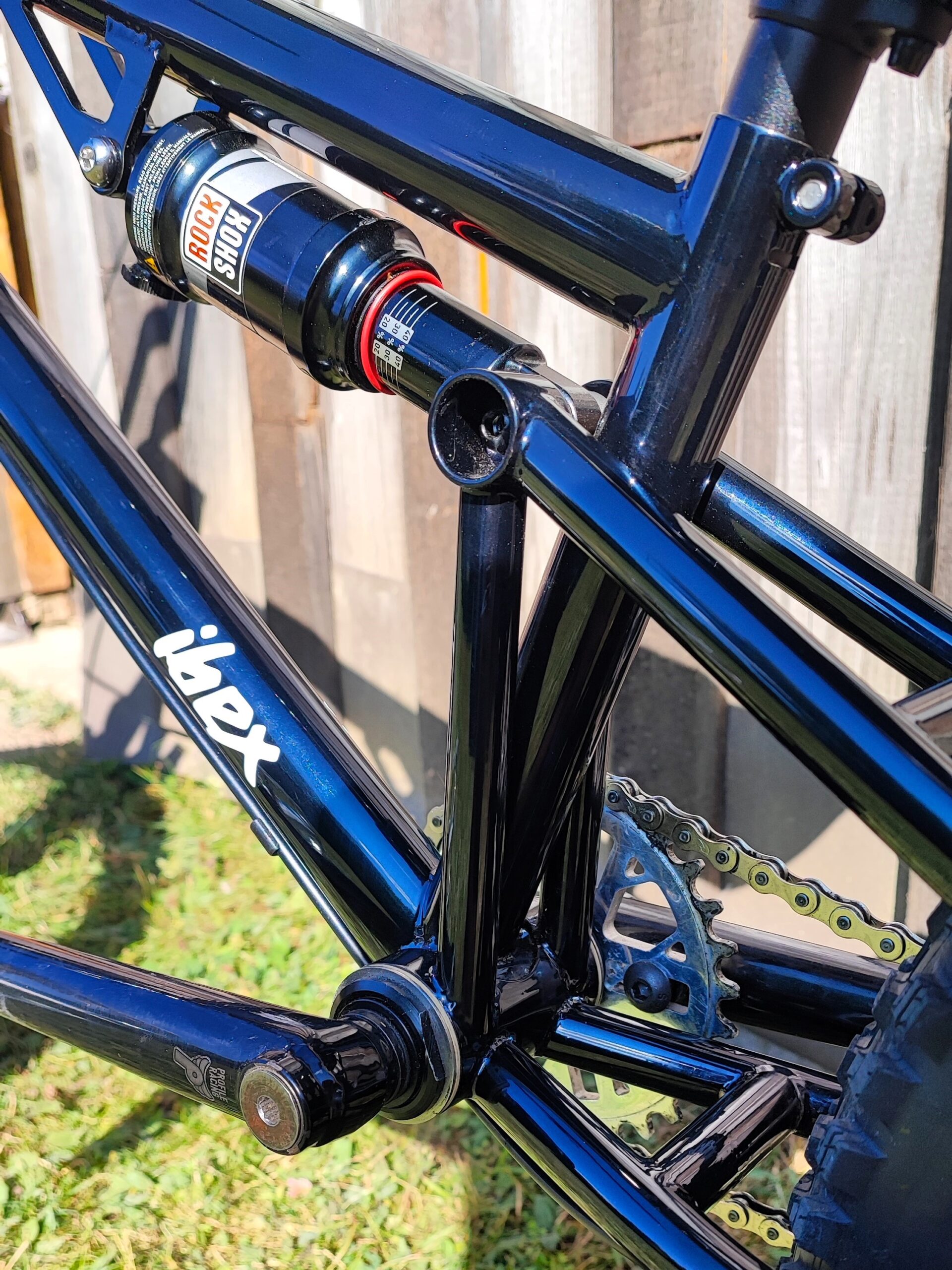

Rear shock required: 165 x 38 mm for 100 mm of rear travel. (Rockshox Monarch or similar; shock not included).
-
-
Increased Rigidity:
-
Our goal was to increase rigidity between the front and rear triangle. We achieved this with a simple, maintenance-free pivot point, utilizing a clever assembly of bushings and precision machined parts.
-
-
Premium Materials:
-
Built with a selection of Reynolds 631 and Chromoly 4130 tapered stays. This combination ensures the perfect balance between legendary strength and lightness.
-
-
Progressive Geometry:
-
The head tube angle and height are adjusted to provide the necessary stability at high speed while maintaining the distinctive agility of a 20-inch for tricks and tight spots.
-
Geometry Details
| Feature | Dimensions |
| Actual Top Tube | 21.6″ |
| Head Tube Angle | 71° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height (with 20 x 2.6″ wheels) | 310 mm / 12.2″ |
| Chainstays (Slammed) | 14.80″ |
| Standover | 8″ |
| Specification | Details |
| Headset | Tapered Integrated 1 1/8″ – 1.5″ |
| Bottom Bracket | Euro BB 73mm |
| Rear Wheel Spacing | 110 x 10 mm |
| Available Colors | Dark Night Blue / Clear Black Chrome |

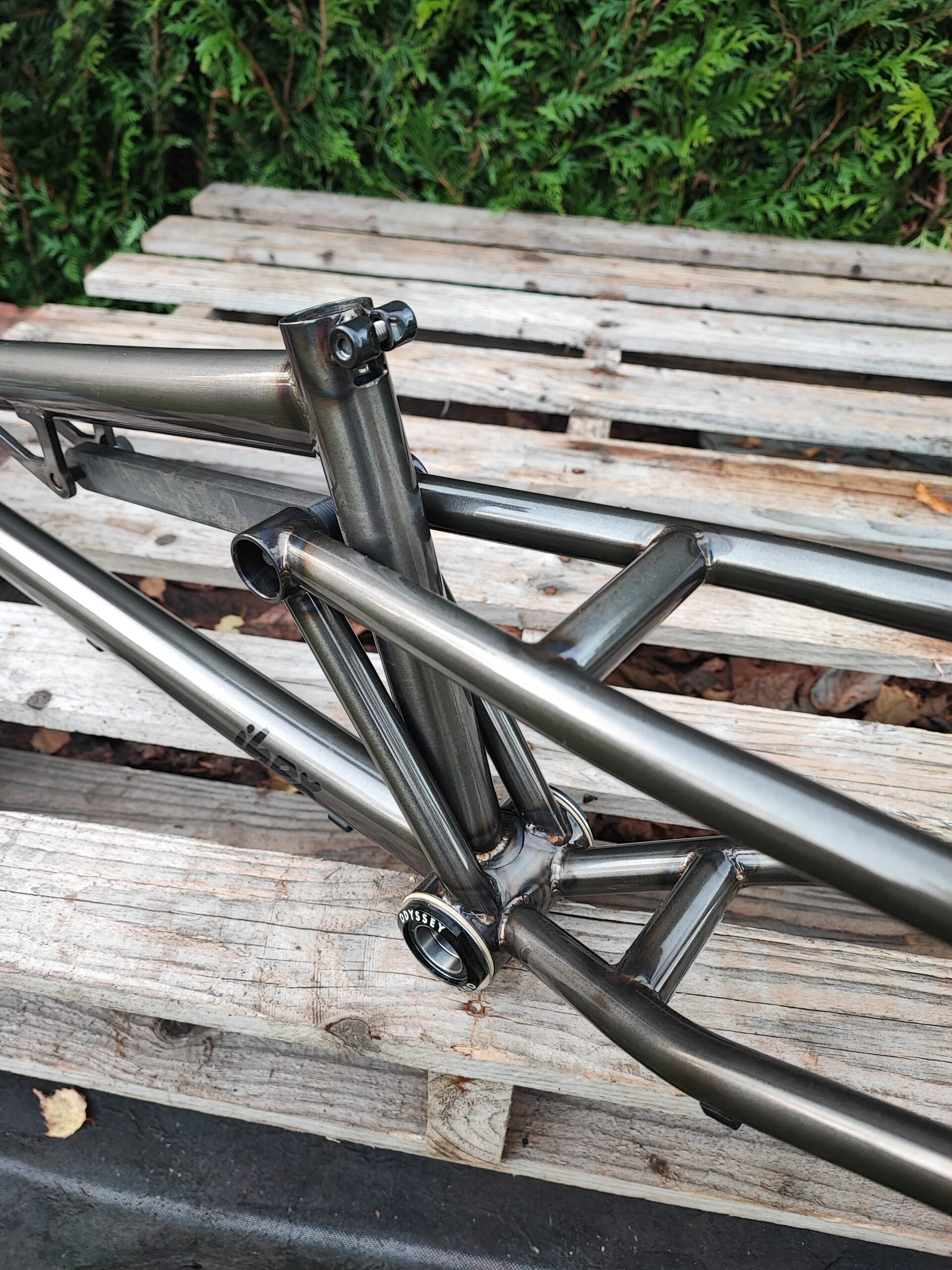

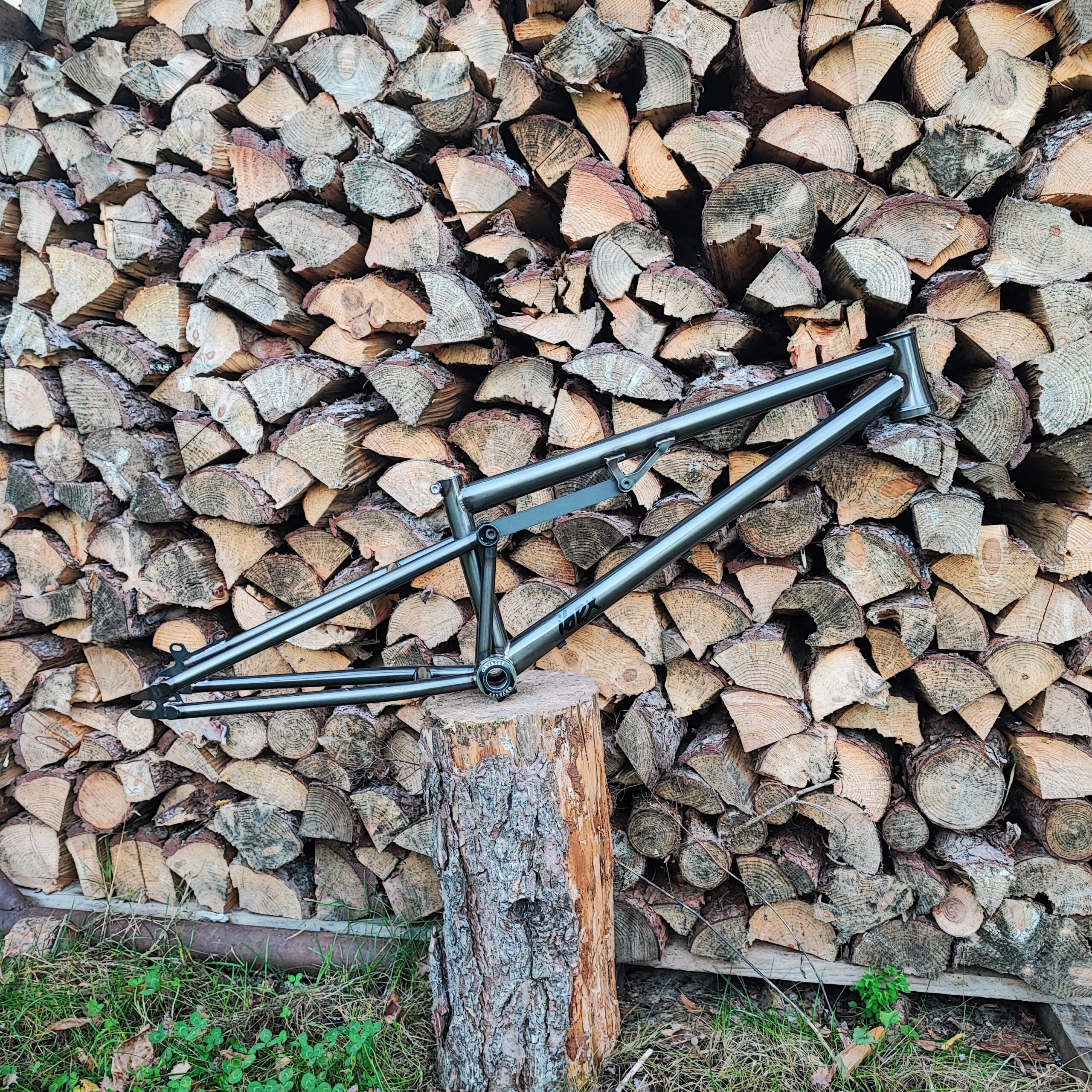

Note on Finish: Please note that the Clear Black Chrome finish has an inferior resistance to rust. CCW does not guarantee that the finish will not deteriorate over time.
Limited Pre-Order Options
Secure your handmade CCW IBEX frame now by selecting your kit:
| Kit | Content | Price |
| GOAT Frame Kit | IBEX Frame + Soil Headset + Euro BB (19 mm or 22 mm, please specify with your order) | €1149 |
| BIG HORN Frame Kit | IBEX Frame + Soil Headset + Euro BB (19 mm or 22 mm, please specify with your order) +Fourche MANITOU J-Unit Comp 20 100 1.5T | €1699 |
Custom 110x10mm disc rear wheel available at discount price with any frame purchase, leave us a message here
Pre-Order Information & Policy
-
Estimated Delivery: February/March 2026.
-
The remaining balance due, including shipping costs, will be communicated to you before shipment.
-
Shipping Cost Estimate: France €20 / Europe €45 / Worldwide €90.
-
Deposit Policy (Final):
-
The deposit is non-refundable.
-
However, if you decide to cancel your order, the full deposit amount can be used as store credit towards any other product (parts/frames ) available on our webstore.
-
